Ingress to a microservices-based application connected via Linkerd's service mesh

​

What you’ll need

• An existing remote or local Kubernetes cluster or the minikube CLI installed locally to create a new testing cluster.
• The Linkerd 2.x CLI installed locally (helper script, Homebrew, or binary in your $PATH).
• An ngrok account.
• kubectl and Helm 3.0.0+ installed on your local workstation.
• The ngrok Kubernetes Operator installed on your cluster.
• A reserved domain from the ngrok dashboard or API; this guide refers to it as <NGROK_DOMAIN>.

​

Set up a local development cluster

• Create a local Kubernetes cluster with minikube. Assign it a profile named ngrok-linkerd with -p, and for the best compatibility with Linkerd, use the containerd container runtime.
  minikube start -p ngrok-linkerd --container-runtime=containerd

  If your OS does not support containerd, you can run minikube without specifying the container runtime.

  minikube start -p ngrok-linkerd


  If minikube defaults to using the docker runtime, you will likely see an error related to root privileges when installing Linkerd to your cluster. The error includes a workaround to let you install Linkerd despite using the docker runtime.
• Use kubectl to verify your local cluster is running properly.
  kubectl get namespaces

  NAME              STATUS   AGE
  default           Active   72s
  kube-node-lease   Active   72s
  kube-public       Active   72s
  kube-system       Active   72s


​

Deploy Linkerd’s service mesh to your cluster

​

Deploy an example microservices-based application

• Reserve an ngrok static subdomain for ingress from the Domains page of the dashboard if you don’t have one already. This subdomain will be your NGROK_DOMAIN for the remainder of this guide, and it provides a public route for HTTP, HTTPS, and TLS traffic.
• Deploy Emojivoto to the emojivoto namespace.
  curl --proto '=https' --tlsv1.2 -sSfL https://run.linkerd.io/emojivoto.yml \
    | kubectl apply -f -

• Add meshing by injecting Linkerd’s data plane proxies into each pod with a rolling deploy. The following command retrieves all deployments from the previous step, injects the Linkerd proxy, and redeploys each pod.
  kubectl get -n emojivoto deploy -o yaml \
    | linkerd inject - \
    | kubectl apply -f -

• Verify your data plane with linkerd -n emojivoto check --proxy; it should end with a healthy status check.
  linkerd -n emojivoto check --proxy
  ...
  Status check results are √

• Create a new emojivoto-ingress.yaml file and add the following YAML content. It tells the ngrok Kubernetes Operator to route traffic on your NGROK_DOMAIN to the web-svc service you created when deploying Emojivoto.
  Edit line 9 of the manifest below (the NGROK_DOMAIN variable) with your ngrok subdomain (for example, one-two-three.ngrok.app).
  showLineNumbers

  apiVersion: networking.k8s.io/v1
  kind: Ingress
  metadata:
    name: emojivoto-ingress
    namespace: emojivoto
  spec:
    ingressClassName: ngrok
    rules:
      - host: <NGROK_DOMAIN>
        http:
          paths:
            - path: /
              pathType: Prefix
              backend:
                service:
                  name: web-svc
                  port:
                    number: 80

• Apply the emojivoto-ingress.yaml manifest you just created.
  kubectl apply -f emojivoto-ingress.yaml

  Give your cluster a few moments to launch the necessary resources and for ngrok to pick up the new tunnel.
  Troubleshooting: If you see an error when applying the manifest, double-check that you’ve updated the NGROK_DOMAIN value and try again.
• Access your Emojivoto application by navigating to your ngrok domain (for example, https://one-two-three.ngrok.app) in your browser.

​

Add Linkerd’s dashboard to verify meshing and mTLS

• Install the Linkerd dashboard.
  linkerd viz install | kubectl apply -f -

• To verify mTLS, restart all pods in the emojivoto namespace to enable tapping.
  kubectl -n emojivoto rollout restart deploy

• Use Linkerd’s tap feature: run linkerd viz -n emojivoto tap deploy to stream traffic from all pods in the emojivoto namespace to your terminal. The Emojivoto app generates traffic automatically, so you’ll see a consistent stream of requests.
  linkerd viz -n emojivoto tap deploy
  ...
  req id=0:11 proxy=out src=10.244.0.15:43706 dst=10.244.0.2:8080 tls=true :method=POST :authority=emoji-svc.emojivoto:8080 :path=/emojivoto.v1.EmojiService/ListAll

  You should see tls=true in all of these requests between these pods. You can also use kubectl get pods -o wide to see the IP address of each pod, which lets you verify the source and destination of each request. For example, the request shown above is the web-svc service sending a POST request, with mTLS enabled, to the emoji-svc service, which maintains and stores the votes database.

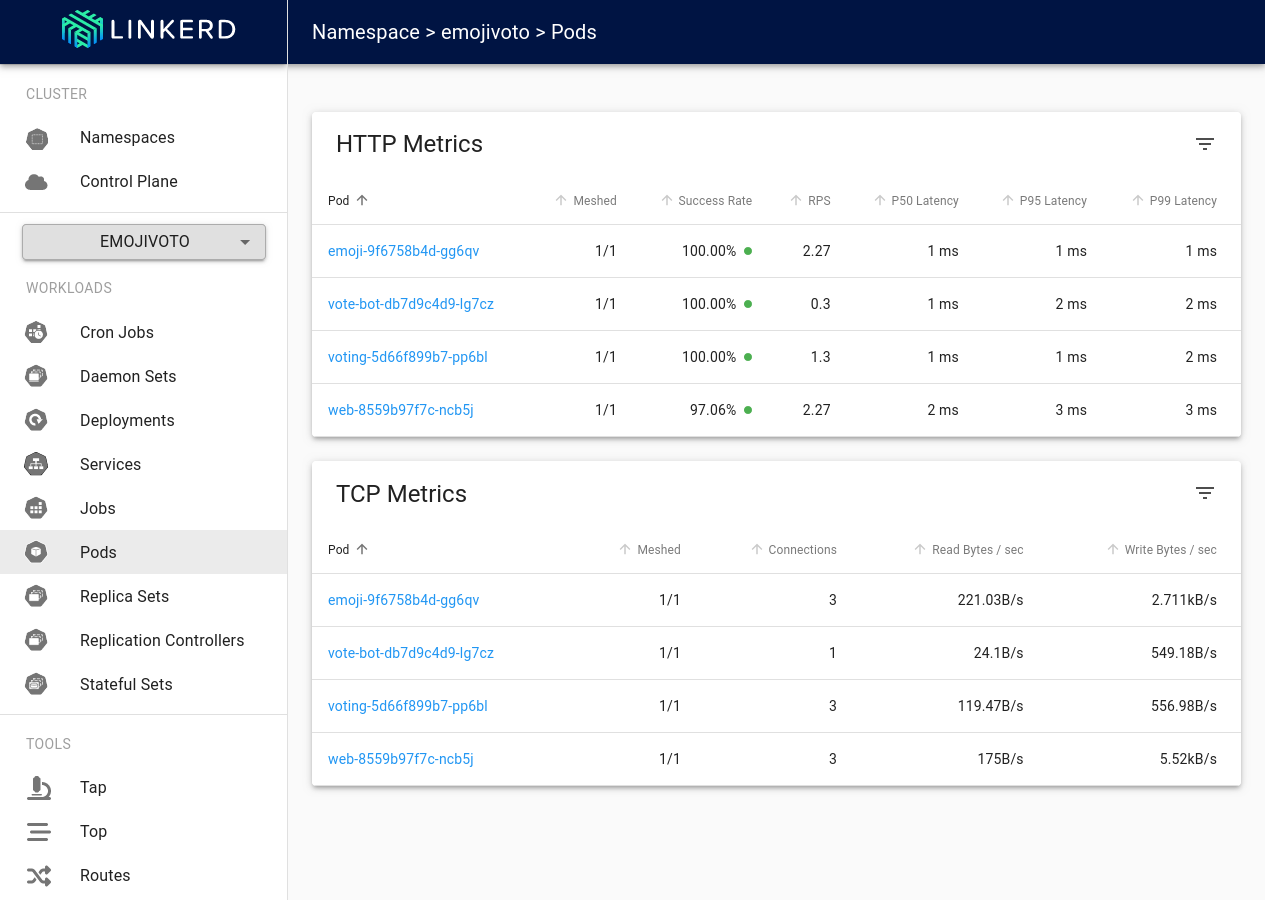

• Run linkerd viz dashboard & to open the Linkerd dashboard in your browser. The default dashboard shows golden metrics (success rates, traffic, latencies per namespace) and the number of meshed pods per namespace. Some of the auto-generated traffic is designed to fail, which shows how to use the dashboard to debug pod-to-pod issues.

​

What’s next?

​

Clean up

minikube stop -p ngrok-linkerd
minikube delete -p ngrok-linkerd

rm -rf $HOME/.linkerd2

​

Extend your ngrok Kubernetes Operator and Linkerd integration
