This guide refers to using SSO to authenticate access to your endpoints. You cannot use these instructions to set up SSO for logging into your ngrok account in the dashboard.
This guide explains how to configure Wallix Trustelem as the primary Identity Provider for ngrok tunnels using single sign-on (SSO). By integrating Wallix Trustelem SSO with ngrok, you can:
  • Restrict access to ngrok tunnels only to users authenticated via Wallix Trustelem
  • Use Wallix Trustelem security policies and MFA authenticators
  • Use Wallix Trustelem’s Dashboard to facilitate access to ngrok apps
The ngrok integration with Wallix Trustelem supports SP-Initiated SSO. In this mode, users access ngrok endpoints and are redirected to Wallix Trustelem for authentication.

​
What you’ll need

  • A Wallix Trustelem account with administrative rights to create apps.
  • An ngrok Pay-as-you-go account with an authtoken or admin access to configure endpoints with OpenID Connect.

​
1. Configure Wallix Trustelem

  • Access the WALLIX Trustelem administration console and sign in using your Trustelem account.
  • On the Dashboard page, click Apps on the left menu, click Add an application, click the OpenID Connect application tile in the Generic models section.

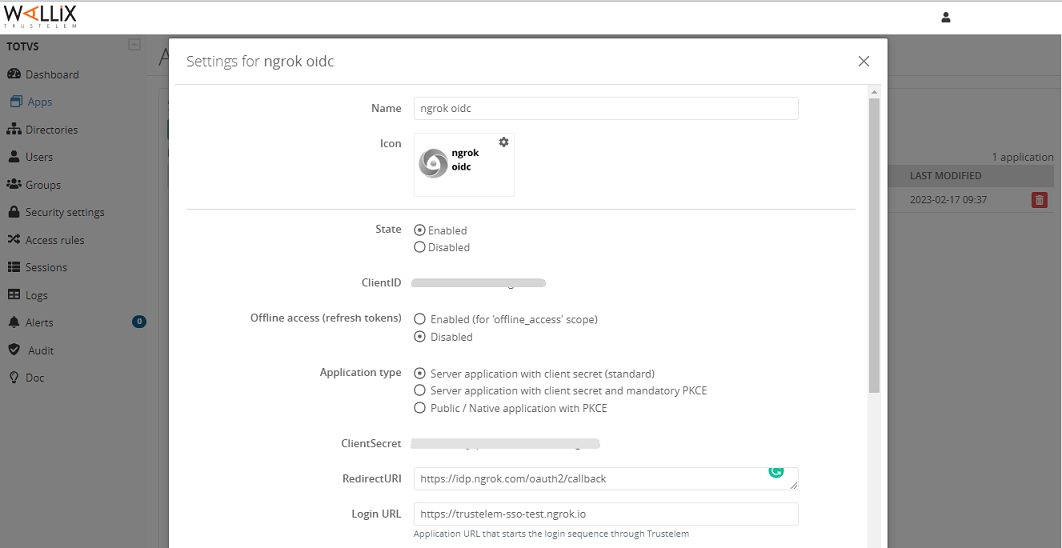

  • On the Settings popup, enter ngrok oidc in the Name field, enter https://idp.ngrok.com/oauth2/callback in the RedirectURI field, and enter https://trustelem-sso-test.ngrok.app in the Login URL field.
  • On the Settings popup, make note of the value of both the ClientID and the ClientSecret fields, and then click Save.
  • Make note of the value of the URL of the Issuer field and then click Close.

​
2. Configure ngrok

ngrok can use Wallix Trustelem SSO in two ways:
  • From the ngrok CLI (using the --oidc parameter)
  • From the ngrok dashboard

​
Option 1: ngrok CLI

This tutorial assumes you have an app running locally (for example, on localhost:3000) with the ngrok client installed.
  • Launch a terminal.
  • Enter the following command to launch an ngrok tunnel with Wallix Trustelem SSO:
    ngrok http 3000 --oidc=TRUSTELEM_OAUTH_URL \
--oidc-client-id=TRUSTELEM_CLIENT_ID \
--oidc-client-secret=TRUSTELEM_CLIENT_SECRET \
    Replace the following with values:
    • TRUSTELEM_OAUTH_URL: The issuer URL you copied from the Trustelem console.
    • TRUSTELEM_CLIENT_ID: The client ID you copied from the Trustelem console.
    • TRUSTELEM_CLIENT_SECRET: The client secret you copied from the Trustelem console.
    Alternatively, add the --url YOUR_DOMAIN argument to get your custom URL, replacing YOUR_DOMAIN with your URL of preference.
  • Copy the URL available next to Forwarding (for example, https://trustelem-sso-test.ngrok.app).
  • Skip to Step 3.

​
Option 2: Traffic Policy

This tutorial assumes you have an app running locally (for example, on localhost:3000) with the ngrok client installed.
Create a policy.yaml file with the following content, replacing the placeholder values with those copied from Wallix Trustelem:
on_http_request:
  - actions:
      - type: openid-connect
        config:
          issuer_url: 'YOUR_TRUSTELEM_ISSUER_URL'
          client_id: 'YOUR_TRUSTELEM_CLIENT_ID'
          client_secret: 'YOUR_TRUSTELEM_CLIENT_SECRET'
          scopes:
            - openid
            - profile
            - email
Launch an ngrok tunnel with this policy:
ngrok http 3000 --traffic-policy-file policy.yaml --url YOUR_DOMAIN

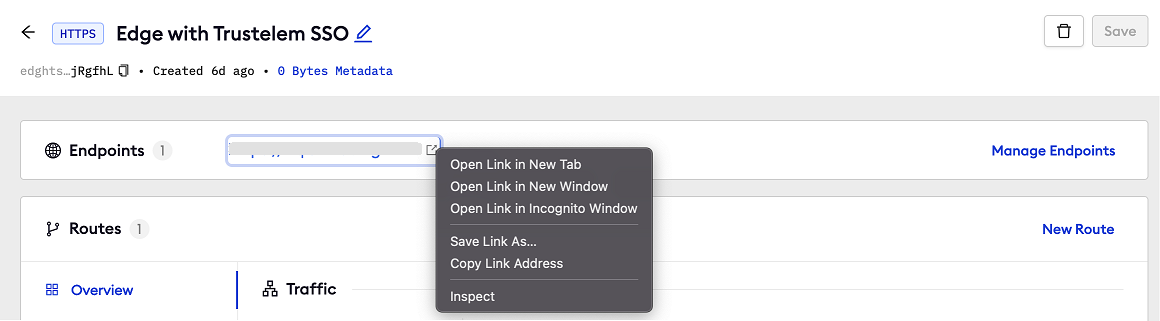

Copy the URL next to Forwarding (for example, https://trustelem-sso-test.ngrok.app).

​
Grant access to Wallix Trustelem users

Wallix Trustelem allows its users to access OIDC-integrated apps. To create a user, follow the instructions below:
  • On the left menu of the WALLIX Trustelem administration console, click Users and then click Create User.
  • Enter values for First Name, Last Name, and Primary Email fields, and then click Save.

​
Test the integration

  • In your browser, launch an incognito window.
  • Access your ngrok tunnel (for example, https://trustelem-sso-test.ngrok.app or using the copied endpoint URL).
  • You should be prompted to log in with your Wallix Trustelem credentials.
  • After logging in, you should be able to see your web app.
