The ngrok Operator for Kubernetes is the official controller for adding public and secure ingress traffic to your k8s services. This open source Operator works with any cloud, locally hosted, or on-premises Kubernetes cluster to provide ingress to your applications, APIs, or other services while also offloading network ingress and middleware execution to ngrok’s platform. vcluster is an open source project for creating virtual clusters that run inside regular namespaces, which provides strong isolation and easy access for multiple tenants with low cost and overhead. The pods you deploy on a vcluster are scheduled inside of the underlying cluster, while other resources, like deployments and CRDs, exist only inside the virtual cluster. Together, the ngrok Kubernetes Operator and vcluster work to provide secure and load-balanced ingress for services running on a virtual cluster, which lets you isolate development environments, create an internal developer platform (IDP) in cloud native environments, and run experiments or simulations virtually while properly routing external traffic. With this guide, you’ll use an existing Kubernetes cluster, or set up a local development cluster with minikube, to launch a virtual cluster, and deploy a demo application. You’ll then deploy the ngrok Kubernetes Operator to connect your demo application to the ngrok platform to route traffic to your vcluster.

​
What you’ll need

  • The vcluster CLI installed locally.
  • An existing remote or local Kubernetes cluster OR minikube to create a new demo cluster locally.
  • An ngrok account.
  • kubectl and Helm 3.0.0+ installed on your local workstation.
  • The ngrok Kubernetes Operator installed on your cluster.
  • A reserved domain, which you can get in the ngrok dashboard or with the ngrok API.
    • You can choose from an ngrok subdomain or bring your own custom branded domain, like https://api.example.com.
    • We’ll refer to this domain as <NGROK_DOMAIN>.

​
Set up a local virtual cluster with vcluster

To follow along with this guide, you need a remote or local Kubernetes cluster with vcluster installed. If you have an existing cluster with vcluster set up, you can skip this step and proceed to 2. Install a sample application. If you don’t have a cluster already, create one locally with minikube and install vcluster.
  1. Create a local Kubernetes cluster with minikube.
    minikube start --profile dc1 --memory 4096
  2. Use the minikube CLI to ensure your new local cluster is running properly.
    kubectl get namespaces

NAME              STATUS   AGE
default           Active   5m55s
kube-node-lease   Active   5m55s
kube-public       Active   5m55s
kube-system       Active   5m55s
  3. Create a new vcluster with the name my-vcluster, which creates a new namespace called vcluster-my-cluster and automatically switches the active kube context to use your new vcluster.
    vcluster create my-vcluster --expose-local
  4. To ensure your new local cluster is running properly get the namespaces for your instance. Your list of namespaces in the my-vcluster context should look something like this.
    kubectl get namespaces

NAME              STATUS   AGE
default           Active   19s
kube-system       Active   19s
kube-public       Active   19s
kube-node-lease   Active   19s
    If you are not connected to your new vcluster and its kube context, you can run vcluster connect my-vcluster to try again. You know have a vcluster installed on your local minikube cluster.
These steps are partially based the guide Using the ngrok Kubernetes Operator to create Preview Environments with vcluster from Loft, the maintainers of vcluster.

​
Install a sample application

At this point, you have a functional vcluster with the ngrok Kubernetes Operator running and authenticated with your ngrok credentials. To demonstrate how the Operator simplifies routing external traffic to your primary cluster, virtual cluster, and ultimately an exposed service or endpoint, you can install a sample application.
  1. Reserve a domain for ingress if you don’t have one already. Navigate to the Domains section of the ngrok dashboard and click Create Domain or New Domain. We’ll refer to this as <NGROK_DOMAIN> for the remainder of this guide. By creating a subdomain on the ngrok network, you provide a public route to accept HTTP, HTTPS, and TLS traffic.
  2. Create a new Kubernetes manifest (2048.yaml) with the below contents. This manifest defines the 2048 application service and deployment, then configures the ngrok Kubernetes Operator to connect the game-2048 service to the ngrok network. Be sure to replace <NGROK_DOMAIN> with the domain you reserved a moment ago.
    apiVersion: v1
kind: Service
metadata:
  name: game-2048
  namespace: default
spec:
  ports:
    - name: http
      port: 80
      targetPort: 80
  selector:
    app: game-2048
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: game-2048
  namespace: default
spec:
  replicas: 1
  selector:
    matchLabels:
      app: game-2048
  template:
    metadata:
      labels:
        app: game-2048
    spec:
      containers:
        - name: backend
          image: alexwhen/docker-2048
          ports:
            - name: http
              containerPort: 80
---
# ngrok Kubernetes Operator Configuration
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: game-2048-ingress
  namespace: default
spec:
  ingressClassName: ngrok
  rules:
    - host: <NGROK_DOMAIN>
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: game-2048
                port:
                  number: 80
  3. Apply the 2048.yaml manifest to your vcluster.
    kubectl apply -f 2048.yaml
Note: If you get an error when applying the manifest, double check that you’ve updated the NGROK_DOMAIN valueand try again.

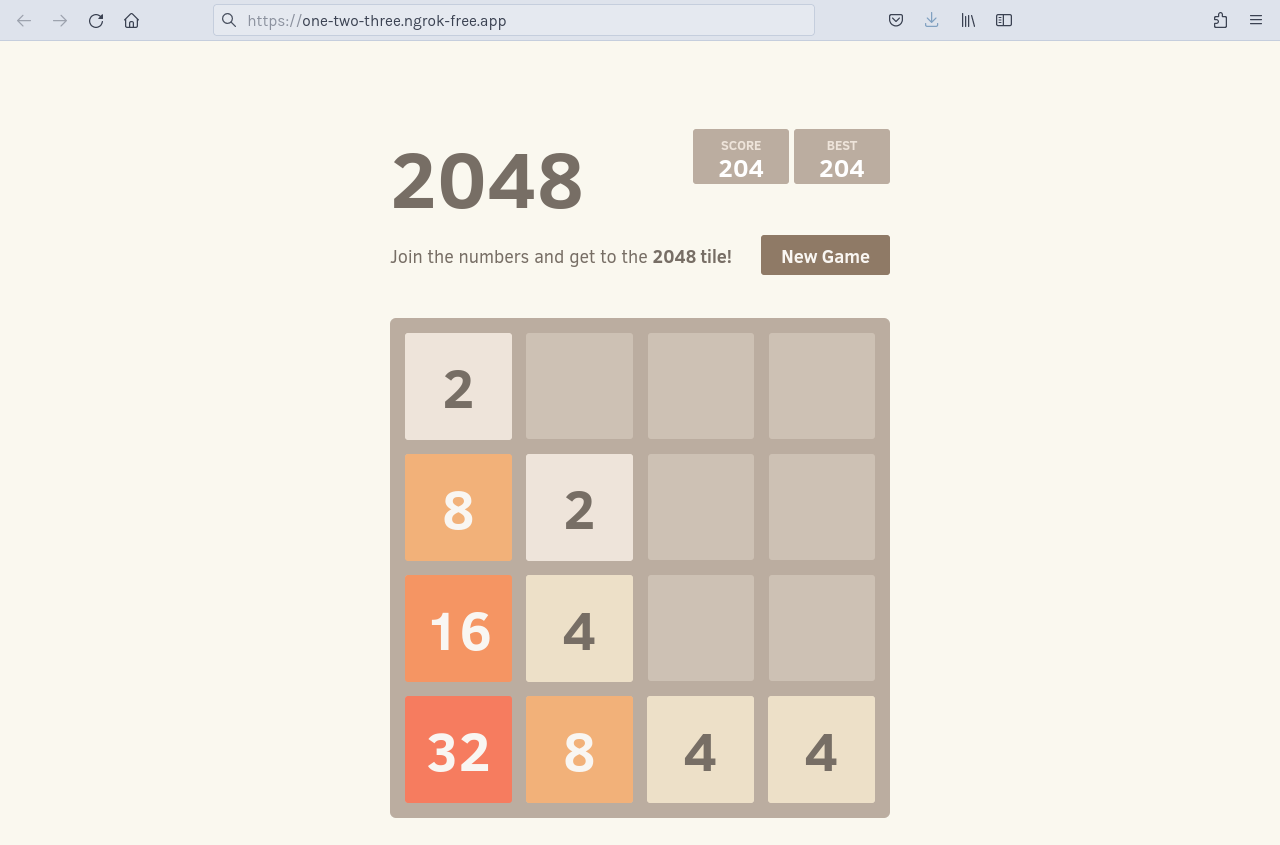

  1. Access your 2048 demo app by navigating to the your domain, for example, https://one-two-three.ngrok.app. ngrok’s edge and your Operator will route traffic to your app from any device or external network as long as your vcluster remains operational. "Navigating directly to the https://one-two-three.ngrok.app domain to see the 2048 application"

​
Add OAuth protection to your demo app

Let’s take your ingress needs a little further by assuming you want to add edge security, in the form of Google OAuth, to the endpoint where your 2048 application is humming along. With our Traffic Policy system and the oauth action, ngrok manages OAuth protection entirely at the ngrok cloud service, which means you don’t need to add any additional services to your cluster, or alter routes, to ensure ngrok’s edge authenticates and authorizes all requests before allowing ingress and access to your endpoint. To enable the oauth action, you’ll create a new NgrokTrafficPolicy custom resource and apply it to your entire Ingress with an annotation. You can also apply the policy to just a specific backend or as the default backend for an Ingress—see our doc on using the Operator with Ingresses.
  1. Edit your existing 2048.yaml manifest with the following, leaving the Service and Deployment as they were. Note the new annotations field and the NgrokTrafficPolicy CR.
     ...
---
# Configuration for ngrok's Kubernetes Operator
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: game-2048-ingress
  namespace: default
  annotations:
    k8s.ngrok.com/traffic-policy: oauth
spec:
  ingressClassName: ngrok
  rules:
    - host: <NGROK_DOMAIN>
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: game-2048
                port:
                  number: 80
---
# Traffic Policy configuration for OAuth
apiVersion: ngrok.k8s.ngrok.com/v1alpha1
kind: NgrokTrafficPolicy
metadata:
  name: oauth
  namespace: default
spec:
  policy:
	   on_http_request:
		   - type: oauth
			   config:
			     provider: google
  2. Re-apply your 2048.yaml configuration.
    kubectl apply -f 2048.yaml
  3. When you open your demo app again, you’ll be asked to log in via Google. That’s a start, but what if you want to authenticate only yourself or colleagues?
  4. You can use expressions and CEL interpolation to filter out and reject OAuth logins that don’t contain example.com. Update the NgrokTrafficPolicy portion of your manifest after changing example.com to your domain.
    # Traffic Policy configuration for OAuth
apiVersion: ngrok.k8s.ngrok.com/v1alpha1
kind: NgrokTrafficPolicy
metadata:
  name: oauth
  namespace: default
spec:
  policy:
    on_http_request:
      - type: oauth
        config:
          provider: google
      - expressions:
          - "!actions.ngrok.oauth.identity.email.endsWith('@example.com')"
        actions:
          - type: custom-response
            config:
              body: "Hey, no auth for you ${actions.ngrok.oauth.identity.name}!"
              status_code: 400
  5. Check out your deployed 2048 app once again. If you log in with an email that doesn’t match your domain, ngrok rejects your request.

​
What’s next?

You’ve now used the open source ngrok Kubernetes Operator to add secure access to your endpoint without worrying about IPs, network interfaces, or VPC routing. Because ngrok offloads ingress and middleware execution to its global edge, you can follow the same procedure listed above for any Kubernetes environment, like EKS, GKE, and OpenShift, with similar results. If you want to clean up the work you did for this demo application, the easiest way (and the advantage of virtual clusters in the first place) is to disconnect from your vcluster and then delete it with the vcluster CLI. That will remove the namespace and all its resources, returning your primary cluster to its initial state.
vcluster disconnect
vcluster delete my-vcluster
For next steps, explore our Kubernetes docs for more details on how the Operator works, different ways you can integrate ngrok with an existing production cluster, or use more advanced features like bindings or endpoint pooling.
