This guide refers to using SSO to authenticate access to your endpoints. You cannot use these instructions to set up SSO for logging into your ngrok account in the dashboard.
This guide shows you how to configure Okta as the primary Identity Provider for ngrok tunnels using single sign-on (SSO). By integrating Okta SSO with ngrok, you can:
  • Restrict access to ngrok tunnels only to users authenticated via Okta
  • Use Okta security policies, MFA authenticators—including Okta Verify, FastPass, and FIDO2—and ThreatInsights to control access to ngrok tunnels
  • Use Okta’s Dashboard to facilitate access to ngrok apps

​
What you’ll need

  • An Okta account with administrative rights to create apps.
  • An ngrok Pay-as-you-go account with an authtoken or admin access to configure endpoints with SAML.

​
1. Configure Okta

​
Add the ngrok app in Okta

  • Access your Okta Dashboard as an administrator and then click Admin.
  • Click Application > Applications .
  • Click Create App Integration,
  • Select SAML 2.0, and then click Next.
  • Enter the Application label—this is the app name that will be displayed in the okta dashboard for end users—and click Next.
  • Enter in temporary values for “Single sign on URL” and “Audience URI” and select “EmailAddress” for “Name ID format” and then click “Next”.
  • Select I’m an Okta customer adding an internal app and click Finish.
  • Click Done.
  • Under the Sign On tab of the ngrok application, copy the Client ID and Client Secret. These values will be used at ngrok to complete the configuration.

​
Download the IdP metadata

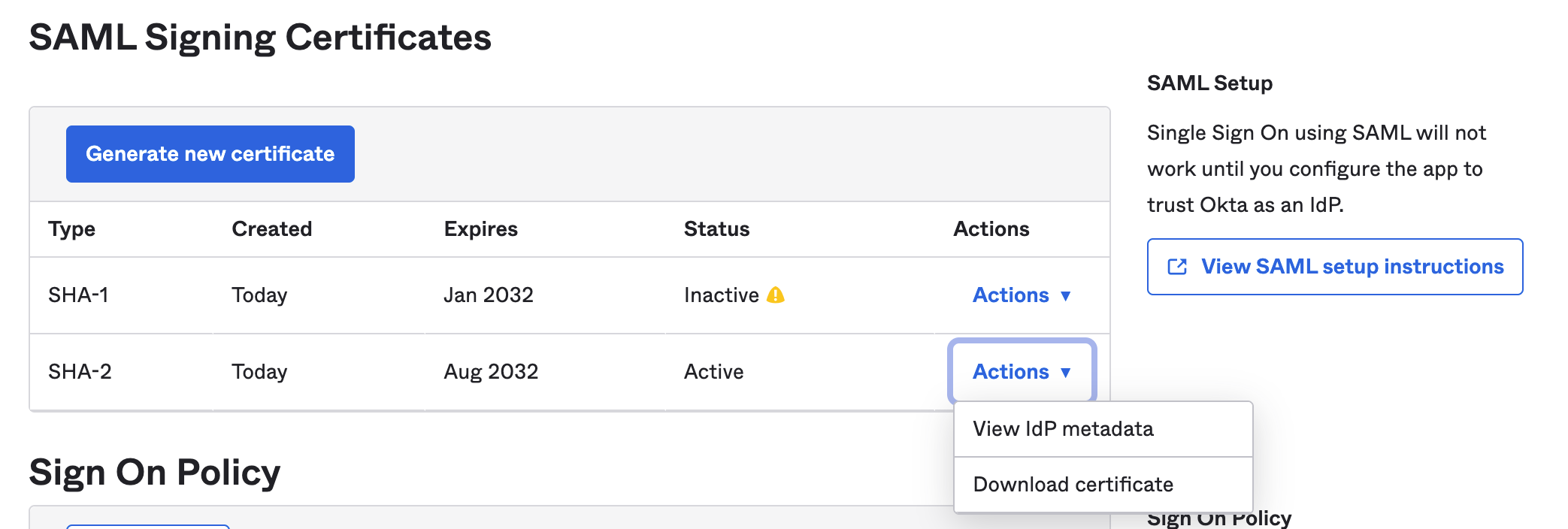

  • Navigate to the Sign On tab on the new app and click Actions under the Active SHA-2 certificate and select View IdP metadata. The metadata will open in a new tab.

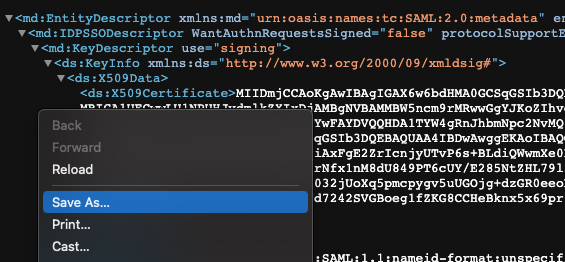

  • In the new tab, select Save As from the File menu to save your metadata.xml file for uploading into ngrok in a later step.

​
Grant access to Okta people and groups

Okta allows administrators to restrict access to SSO apps—such as ngrok—via assignments. By default, apps created in Okta have no assignments; in other words, nobody can use Okta SSO to access ngrok until you assign them to the app. To assign Okta users and groups to the ngrok app:
  • Navigate to the Assignments tab.
  • Use the Assign button to associate groups and users with the ngrok app. To test the SSO with ngrok, make sure you’re assigned to the app.

​
2. Configure ngrok

The SAML Traffic Policy action is currently in developer preview. Request access to configure SAML via Traffic Policy.
Once you have developer preview access, create a policy.yaml file with the following content, replacing YOUR_IDP_METADATA_XML with the IdP metadata XML from Okta:
on_http_request:
  - actions:
      - type: saml
        config:
          idp_metadata: 'YOUR_IDP_METADATA_XML'
The SAML action generates your ngrok SP Entity ID and ACS URL based on your endpoint URL. Refer to the SAML action documentation for how to retrieve these values to complete your IdP configuration. Launch an ngrok tunnel with this policy:
ngrok http 3000 --traffic-policy-file policy.yaml --url YOUR_DOMAIN

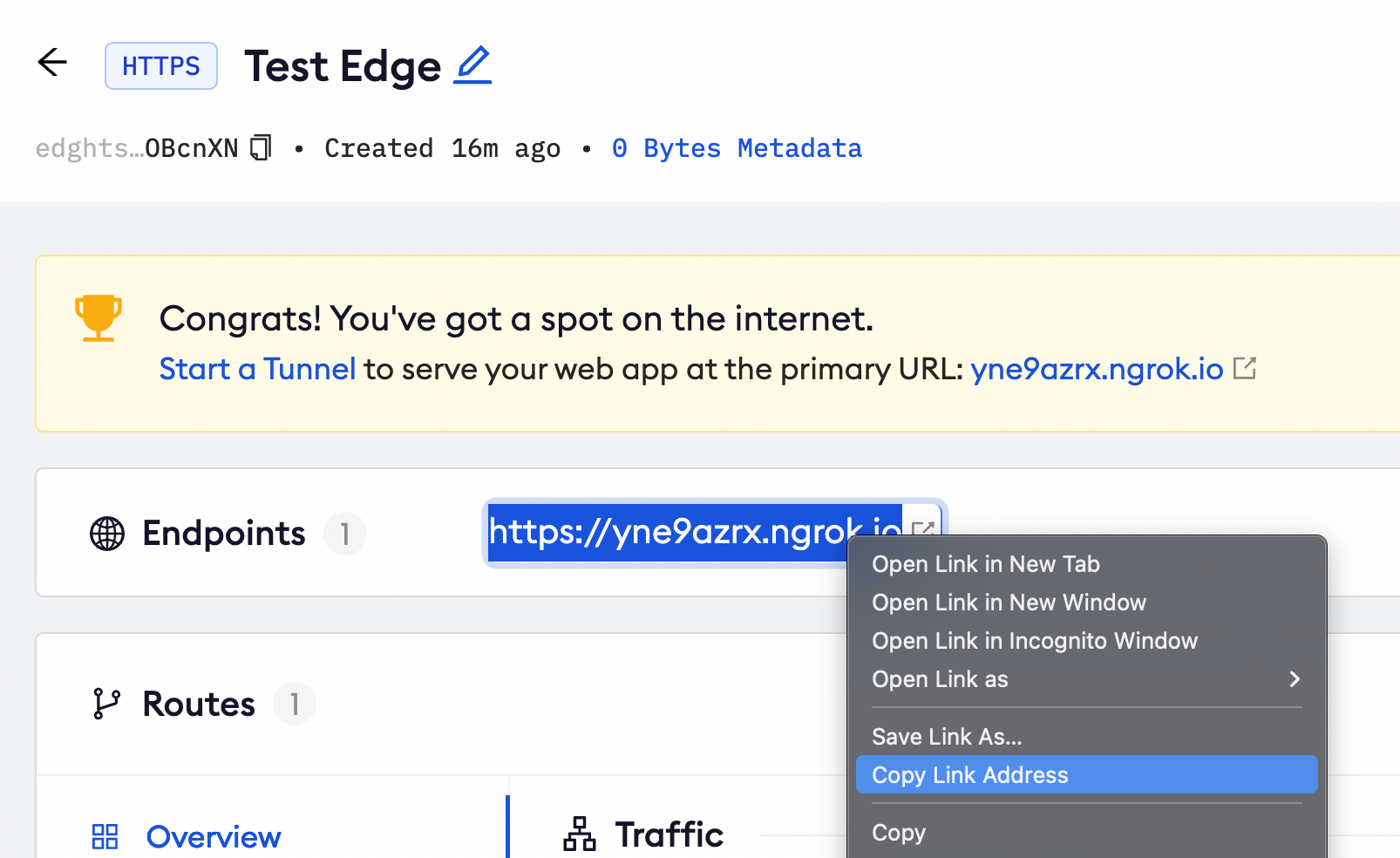

Copy the URL next to Forwarding. You use this URL to test the integration.

​
3. Update the Okta app settings

  • In Okta, open your ngrok app and go to the General tab.

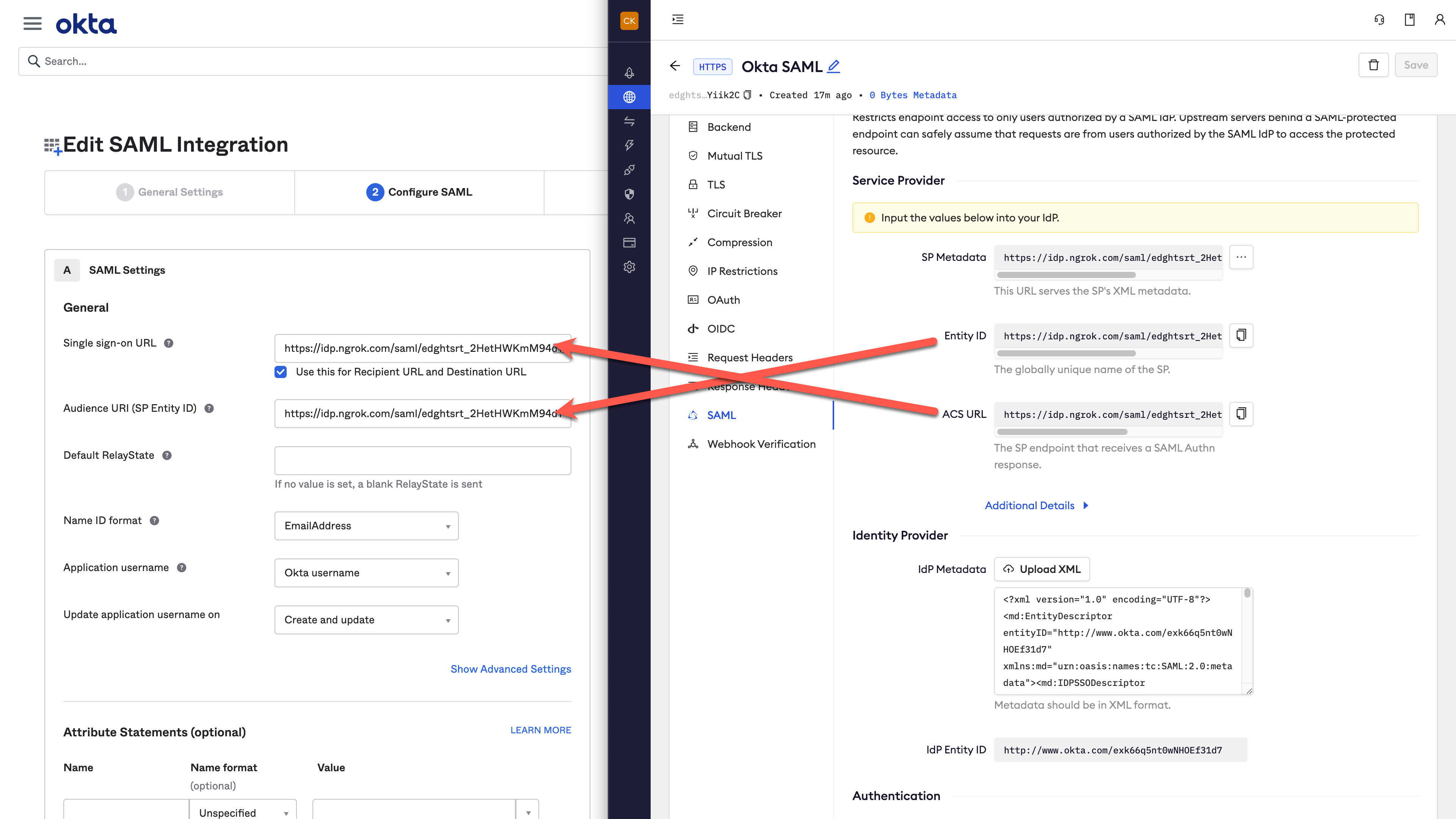

  • In SAML Settings, click Edit, then replace the temporary values with the generated ngrok values:
    • Set Single sign-on URL to your ngrok ACS URL.
    • Set Audience URI (SP Entity ID) to your ngrok SP Entity ID.
  • Save the changes.

​
4. Test the integration

  • In your browser, launch an incognito window.
  • Access your ngrok tunnel (for example, https://okta-sso-test.ngrok.app or using a copied URL).
  • You should be prompted to log in with your Okta credentials.
  • After logging in, you should be able to see your web app.
