Using this guide, you’ll launch a new cluster on DigitalOcean and use the DigitalOcean Marketplace to provision the ngrok Kubernetes Operator to securely ingress public traffic to a demo app. In the end, you’ll have learned enough to deploy your next production-ready Kubernetes app with Rafay, with the ngrok Kubernetes Operator giving you access to additional features, like observability and resiliency, with no extra configuration complexity. Here is what you’ll be building with:
  • The ngrok Kubernetes Operator: ngrok’s official controller for adding secure public ingress and middleware execution to your Kubernetes apps with ngrok’s cloud service. With ngrok, you can manage and secure app traffic at every stage of the development lifecycle while benefiting from simpler configurations, security, and edge acceleration.
  • DigitalOcean: DigitalOcean is a cloud service provider focused on developers, startups, and small-to-midsize businesses. With reliable monthly rates for less than hyperscalers like AWS, DigitalOcean’s Kubernetes solution is a great fit for internal development teams building or scaling up new platforms without massive infrastructure build-out or expense.

​
What you’ll need

​
Provision a new cluster on DigitalOcean with doctl

In this guide, we’ll stick with the CLI as much as possible to showcase how tightly the ngrok Kubernetes Operator can integrate with DigitalOcean and how you might automate these steps in the future.
  1. With doctl installed remotely, scope out the node sizes/specs, which will directly affect your monthly pricing, with the following:
    doctl kubernetes options sizes
  2. Provision your cluster with the command below, replacing NODE_SIZE and CLUSTER_NAME with your chosen size and a relevant name.
    doctl kubernetes clusters create --size NODE_SIZE CLUSTER_NAME

    ...
Notice: Successfully kicked off addon job.
ID                                      Name        Region    Version        Auto Upgrade    Status     Node Pools
d62a17ca-32e0-4d8b-9260-2d0d1c582939    ngrokker    nyc1      1.29.1-do.0    false           running    ngrokker-default-pool
  3. Now you can install the ngrok Kubernetes Operator to provide ingress to our services. Check out our Operator installation doc for details on how to use Helm to install with your ngrok credentials. Your new Kubernetes cluster, managed by DigitalOcean, is all set up—and with the ngrok Kubernetes Operator installed with a single option on the CLI.

​
Deploy an example app on your DigitalOcean-managed cluster

Let’s explore how you can add apps or services to your DigitalOcean-managed Kubernetes cluster. DigitalOcean has a repository of sample Kubernetes apps, including the Bookinfo app, which we’ll use.
  1. Clone the repository to your local workstation and cd into the new directory:
    git clone https://github.com/digitalocean/kubernetes-sample-apps.git
cd kubernetes-sample-apps
  2. Deploy the Bookinfo app to your cluster:
    kubectl apply -k bookinfo-example/kustomize
    You should see your cluster create a handful of new services, then verify everything is running correctly with kubectl get all -n bookinfo.

​
Configure the ngrok Kubernetes Operator

Your Bookinfo app is running, but you have no means of accessing it from your local workstation—or anywhere else, for that matter. You could use kubectl port-forward..., but that’s a fragile method of accessing your new app, and isn’t appropriate for production use. Instead, finish configuring the ngrok Kubernetes Operator to direct incoming requests directly to the container running the user-facing Bookinfo container. The Bookinfo docs recommend port-forwarding to the productpage service, which runs on port 9080—you can use that information to configure the ngrok Kubernetes Operator.
  1. Create a new file called bookinfo-ingress.yaml on your local workstation. This configuration defines how the ngrok Kubernetes Operator will route traffic arriving on NGROK_DOMAIN to the store-front service on port 80 as defined in the manifest.
    Make sure you edit line 10 of the YAML below, which contains the NGROK_DOMAIN variable, with the ngrok domain you created earlier.
    showLineNumbers
    ---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: bookinfo-ingress
  namespace: bookinfo
spec:
  ingressClassName: ngrok
  rules:
    - host: <NGROK_DOMAIN>
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: productpage
                port:
                  number: 9080
  2. Apply the new configuration to your cluster:
    kubectl apply -f ngrok_ingress.yaml
    If you get an error when applying the manifest, double check that you’ve updated the <NGROK_DOMAIN> value and try again.

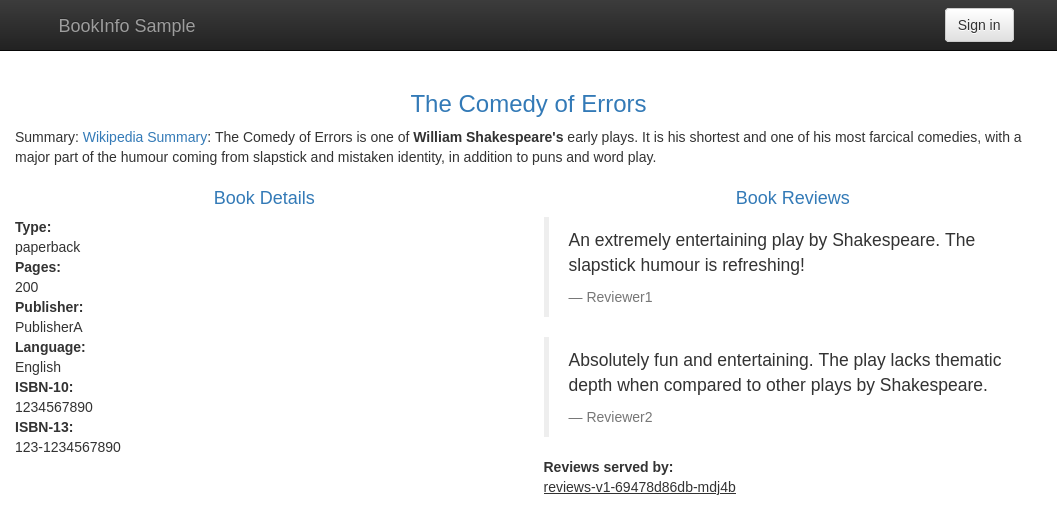

  3. Navigate to https://<NGROK_DOMAIN> in your browser to see your example Bookinfo app as managed, deployed, and publicly networked via DigitalOcean, Kubernetes, and ngrok. Click Normal user to see a little more—it’s not much to look at, but it’s a working Kubernetes app with functional, secure, and simple ingress with the ngrok Kubernetes Operator. Successfully deployed Booklist app on DigitalOcean, Kubernetes, and ngrok

​
Enable extra features of ngrok’s cloud service

To demonstrate how ingress configuration and OAuth support work, you can quickly launch an open-source observability stack including Prometheus, Grafana, and Alertmanager on your cluster.
  1. Head over to the Kubernetes Clusters dashboard on the DigitalOcean console and click the cluster you created previously.
  2. Click the Marketplace tab, find or search for Kubernetes Monitoring Stack, and click Install. Confirm your choice. In the background, DigitalOcean uses Helm to create a new integrated deployment for Prometheus, Grafana, and Alertmanager.
  3. Create a new domain in the ngrok dashboard at monitoring.<NGROK_DOMAIN>.
  4. Edit your ngrok_ingress.yaml file you created in the previous step to include the highlighted configuration at the bottom, which will route all traffic arriving on https://monitoring.NGROK_DOMAIN/ to the kube-prometheus-stack-prometheus service running on port 9090 in your cluster.
    showLineNumbers
    ---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: monitoring-ingress
  namespace: kube-prometheus-stack
spec:
  ingressClassName: ngrok
  rules:
    - host: monitoring.<NGROK_DOMAIN>
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: kube-prometheus-stack-grafana
                port:
                  number: 9090

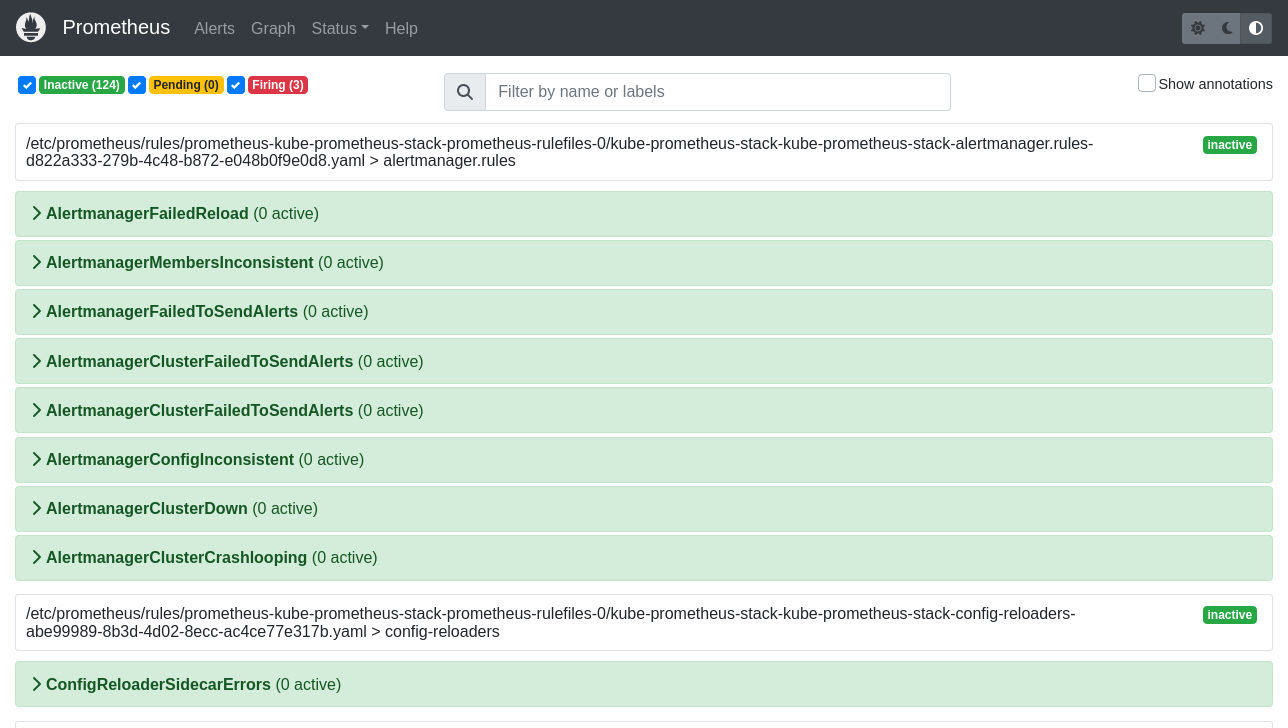

  5. Visit a URL like https://monitoring.NGROK_DOMAIN/alerts to see data from Alertmanager: Looking at the deployed Prometheus and Alertmanager dashboard Having comprehensive observability for your Kubernetes app is paramount, but so is security—you don’t want just anyone snooping around your metrics and alerts.
  6. Edit your ngrok_ingress.yaml file once again to add OAuth, leaving the previous configurations untouched. Note the new annotations field and the NgrokTrafficPolicy CR.
    showLineNumbers
    ---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: monitoring-ingress
  namespace: kube-prometheus-stack
	 annotations:
    k8s.ngrok.com/traffic-policy: oauth
spec:
  ingressClassName: ngrok
  rules:
    - host: monitoring.<NGROK_DOMAIN>
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: kube-prometheus-stack-grafana
                port:
                  number: 9090
 ---
# Traffic Policy configuration for OAuth
apiVersion: ngrok.k8s.ngrok.com/v1alpha1
kind: NgrokTrafficPolicy
metadata:
  name: oauth
  namespace: default
spec:
  policy:
	   on_http_request:
		   - type: oauth
			   config:
			     provider: google
  7. Re-apply your 2048.yaml configuration.
    kubectl apply -f ngrok-ingress.yaml
  8. When you open your demo app again, you’ll be asked to log in via Google. That’s a start, but what if you want to authenticate only yourself or colleagues?
  9. You can use expressions and CEL interpolation to filter out and reject OAuth logins that don’t contain example.com. Update the NgrokTrafficPolicy portion of your manifest after changing example.com to your domain.
    # Traffic Policy configuration for OAuth
apiVersion: ngrok.k8s.ngrok.com/v1alpha1
kind: NgrokTrafficPolicy
metadata:
  name: oauth
  namespace: default
spec:
  policy:
    on_http_request:
      - type: oauth
        config:
          provider: google
      - expressions:
          - "!actions.ngrok.oauth.identity.email.endsWith('@example.com')"
        actions:
          - type: custom-response
            config:
              body: Hey, no auth for you ${actions.ngrok.oauth.identity.name}!
              status_code: 400
  10. Check out your deployed 2048 app once again. If you log in with an email that doesn’t match your domain, ngrok rejects your request.

​
What’s next?

You’ve now used the open-source ngrok Kubernetes Operator to add public ingress to an example app on a Kubernetes cluster managed by DigitalOcean. Because ngrok abstracts ingress and middleware execution to its cloud service, and thanks to DigitalOcean’s doctl tool, you can quickly deploy new clusters, apps, and helpful services without leaving your CLI. Learn more about the ngrok Kubernetes Operator, or contribute to its ongoing development, by checking out the GitHub repository. We also have an extensive explainer for how the Operator works, plus additional documentation, which also includes details on leveraging the new Kubernetes Gateway API.
